OCEANFLO DC WATERMAKERS
OF150A
150 LPH FULLY AUTOMATIC DC WATERMAKER
Press start in the cabin; It does the rest, including:
7-day fresh water flush
Salinity Monitoring and Control
High and Low Pressure safety cut-out
Fresh water pre-filter backflush for extended filter lifespan
Optional Tank Fill Shutdown
IDEAL FOR
A quick guide to whether the OF150A fits your boat and how you cruise.
Why THE OF150A
Take control of your water supply, without relying on Generators or shore supply.
With a watermaker that looks after itself.

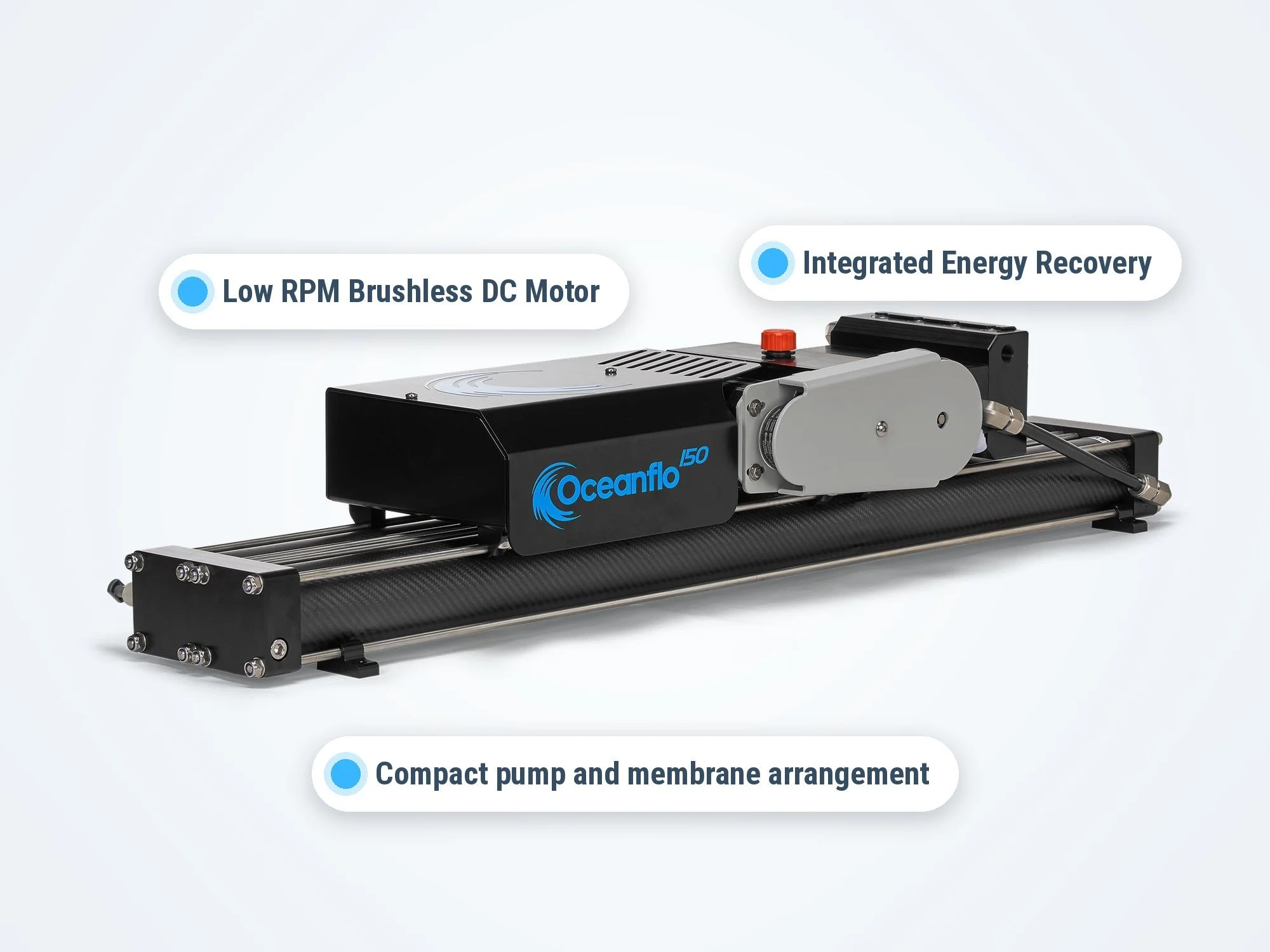

EFFICIENCY
Piston pump simplicity
Energy Recovery performance
The reliability and simplicity of a piston pump is enhanced with an integrated energy recovery system.
Enjoy Energy Recovery performance, without the headache of complex mechanisms and unreliable high pressure boost pumps.
Under 3.8 W/L
Self-regulating pressure adjusts to sea water changes
Minimal moving parts and low operating speed
QUIET AND COMPACT
Shower Longer,
VENTURE FURTHER
A low RPM brushless DC Motor means low noise and vibration.
Run the Watermaker while at anchor, without disturbing the crew.
Low noise and vibration
Small foot-print for ease of install
12V, 24V or 48V systems, no generator needed
EASY TO SERVICE
Low RPM and minimal moving parts maximise service life.
Perform a full seal replacement with a basic set of tools.
Easiest seal replacement on the market
High quality, easy to service components
7 Days a week after sales support
BUILT TO BE MAINTAINED
AT SEA
FULLY AUTOMATIC
THE WATERMAKER THAT
LOOKS AFTER ITSELF
Start and stop from the remote panel in your cabin. Automated salinity level monitoring and safety cutouts to ensure everything runs smoothly. Full product water output diversion, so only clean, fresh water reaches your tank.
Salinity monitoring and control
7-day automatic fresh water flush
High pressure safety cutout
Fresh water pre-filter back flush to extend filter life
Optional tank fill shut-off for on board system integration
SPECIFICATIONS AND WHAT’S INCLUDED
| Specification | OF70M | OF70A | OF150A |
|---|---|---|---|
| Output | 70 L/h | 70 L/h | 150 L/h |
| Control | Manual | Fully automatic | Fully automatic |
| Power at 12 V | ~20 A | ~20 A | ~42 A |
| Voltage | 12 V, 24 V | 12 V, 24 V | 12, 24, 48 V |
| Efficiency | <3.8 W/L | <3.8 W/L | <3.8 W/L |
| Membranes | Dual 21" or single 40" | Dual 21" or single 40" | Dual 40" |
| Fresh water flush | Manual | Automatic, 7-day | Automatic, 7-day |
| Salinity control | 3-way valve | Monitoring + control | Monitoring + control |
| Booster pump | Brushless mag drive | Brushless mag drive | Brushless mag drive |
| Dimensions (Pump and Membranes) | 580 x 270 x 200 mm | 580 x 270 x 200 mm | 1065 x 270 x 200 mm |
| Weight | 24 KG | 24 KG | 30 KG |
| Warranty | 12 months | 12 months | 12 months |
Rated at 26 C feed water and 33 g/L salinity. Output varies with water temperature and salinity.
-
Pump and Motor Assembly
Carbon fiber pressure vessels and RO Membranes
4.5” 5 micron prefilter
Carbon product water and fresh water flush filters
Control panel, and remote cabin control
Brushless magdrive booster pump
-
Hoses and fittings such as through hulls, as these vary by installation.
-
Available in 12V, 24V and 48V options.
Contact us to discuss separating High Pressure Pump from membrane assembly as this can be accommodated on a case by case basis.
-
4
5
6
2
1
3
“
★★★★★
We are over the moon with the performance of this unit, we are regularly making up to 180 litres per hour and it is very easy to use. We are also super happy with the noise level while it is operating.
The service we received was fantastic, from initial consultation to after purchase support was above what would normally be expected.
Grant Harnish, OF150A Owner
COMPARE THE RANGE
Three models, one innovative pump design.
Pick the control level and output that suits your application.

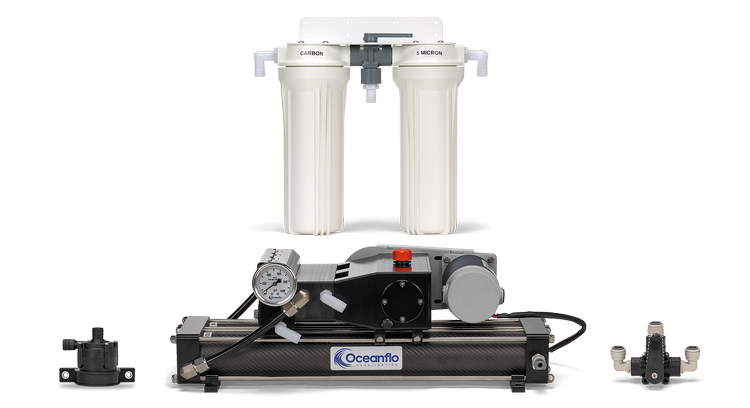

OF70M
Hands-on cruisers who want simple and low cost.
- Output
- 70 L/h
- Control
- Manual
- Power at 12 V
- ~20 A
- Flush
- Manual
- Salinity
- Manual

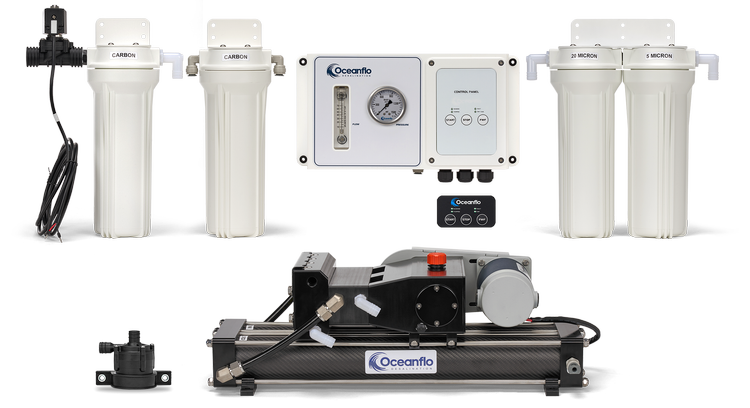

OF70A
Cruisers who want push button operation.
- Output
- 70 L/h
- Control
- Automatic
- Power at 12 V
- ~20 A
- Flush
- 7-day auto
- Salinity
- Monitor and Control
OF150A
Bigger crews and larger boats.
- Output
- 150 L/h
- Control
- Automatic
- Power at 12 V
- ~42 A
- Flush
- 7-day auto
- Salinity
- Monitor and Control
SEE IT UP CLOSE

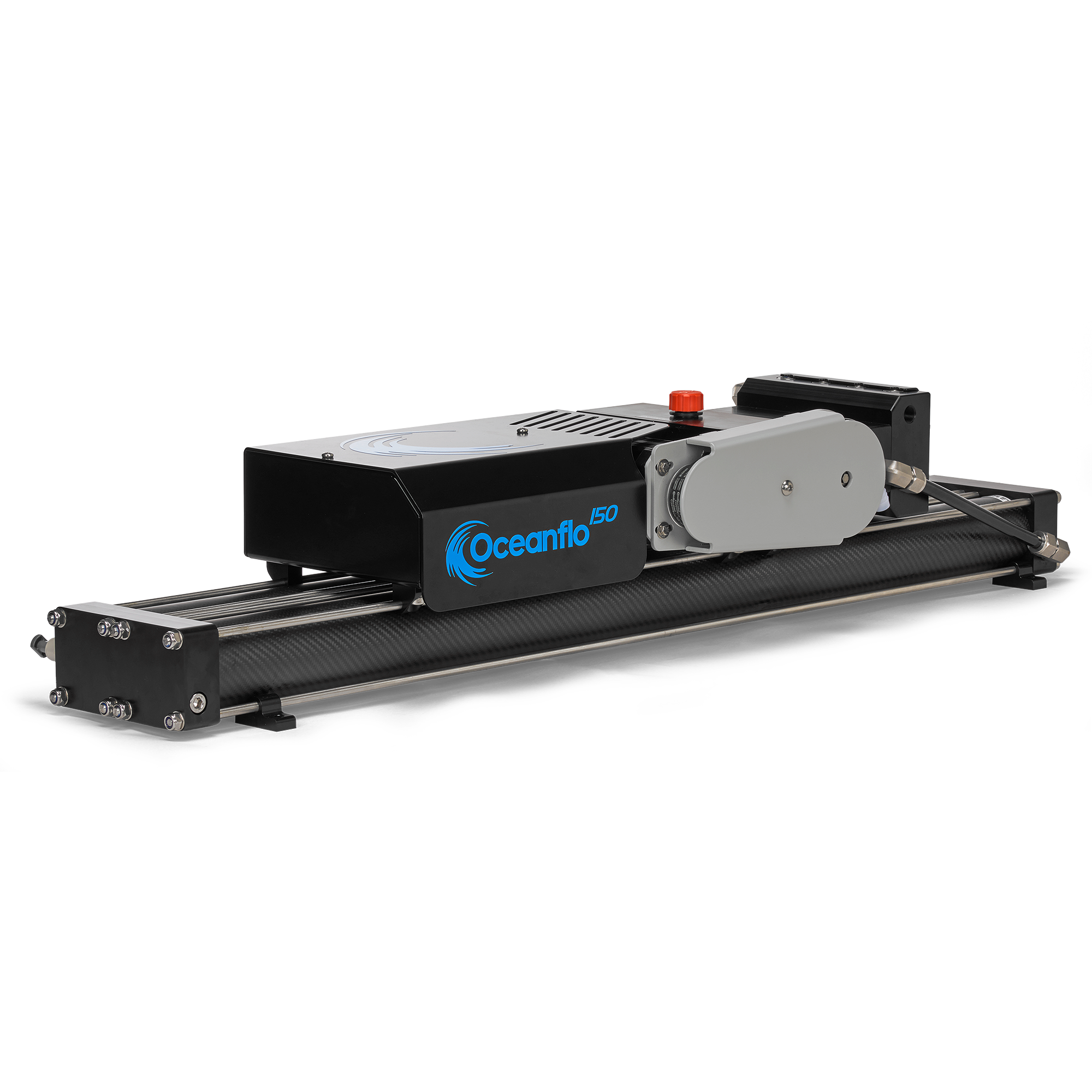

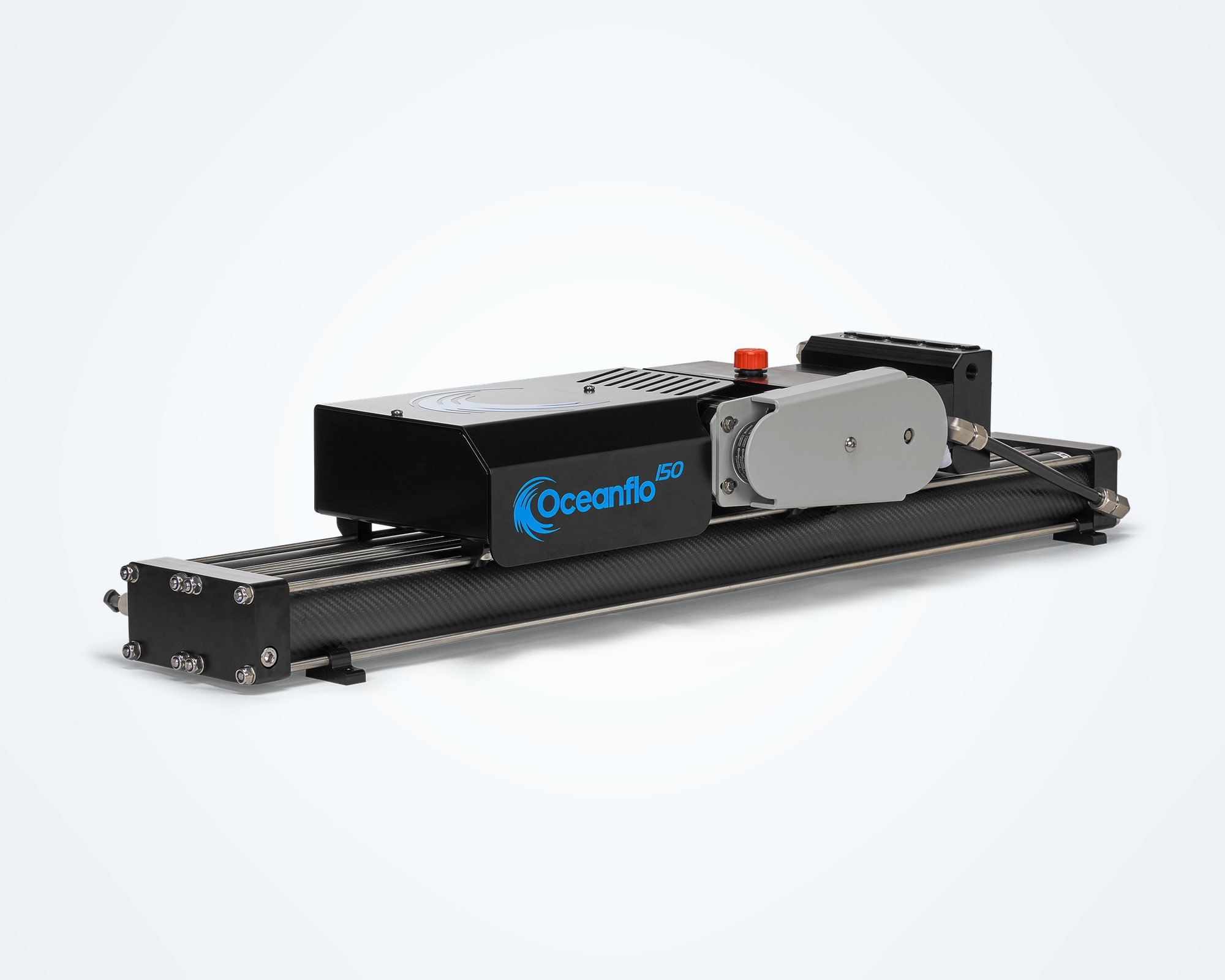

OF150A Pump and Membrane assembly

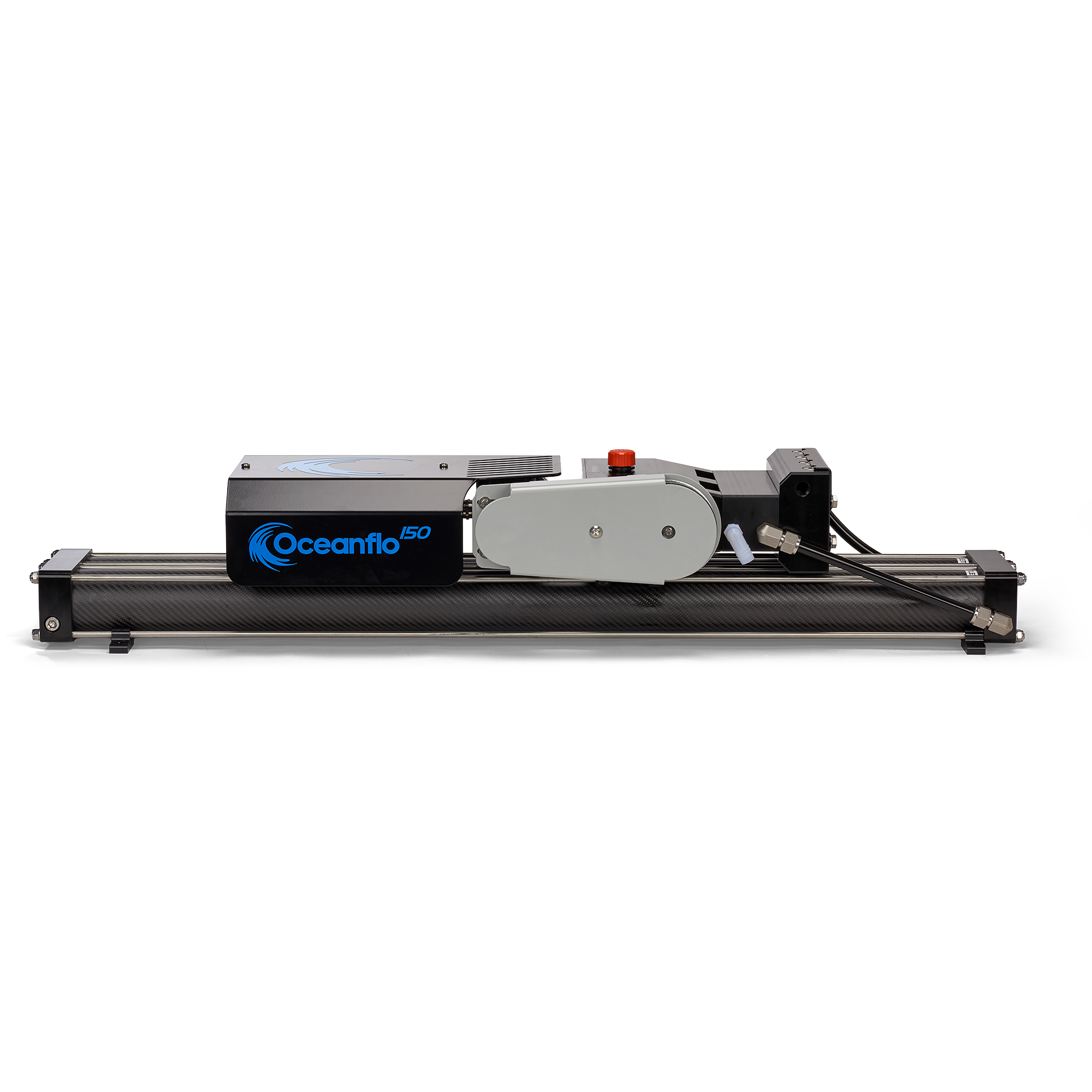

OF150A Pump and Membrane assembly

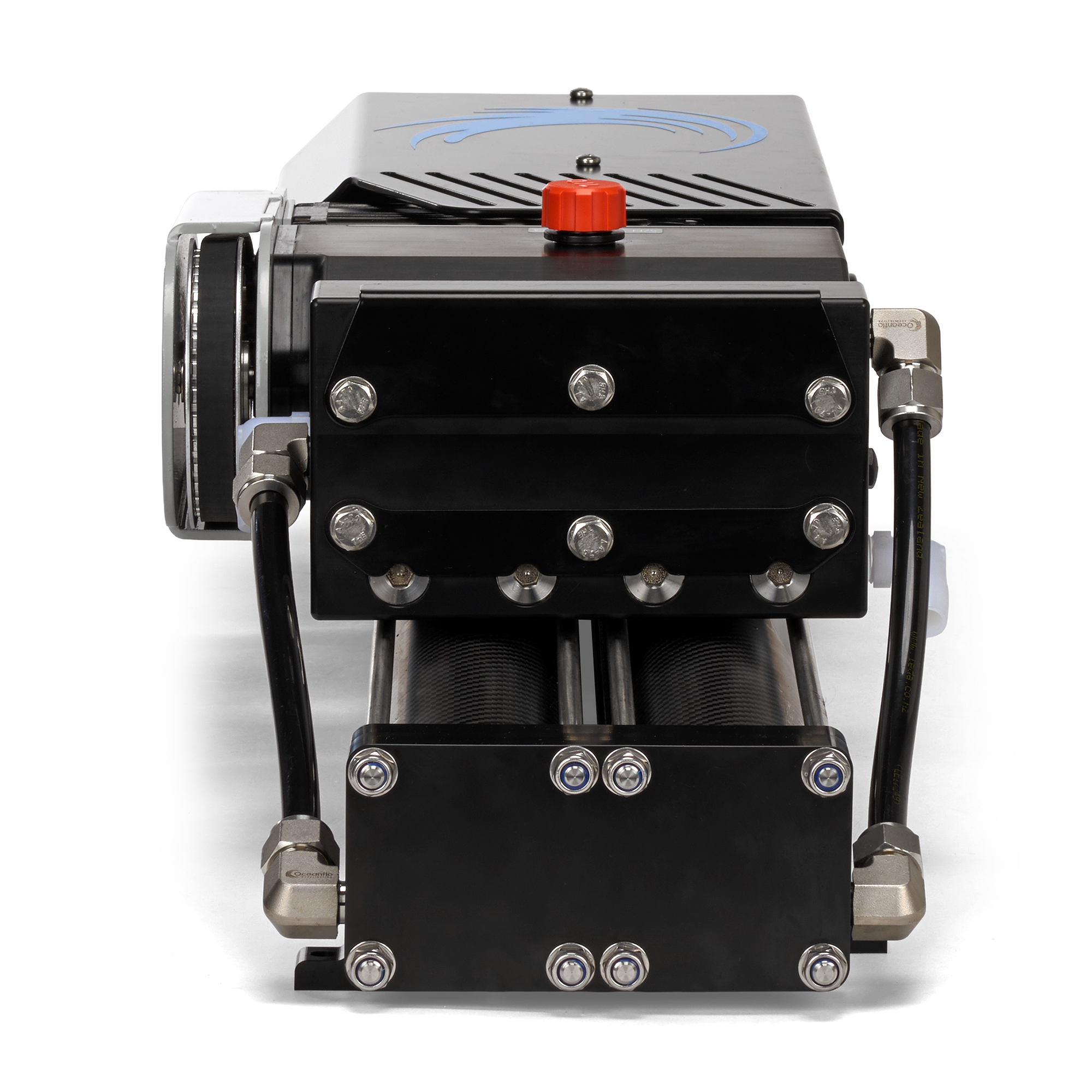

OF150A Pump and Membrane assembly end profile

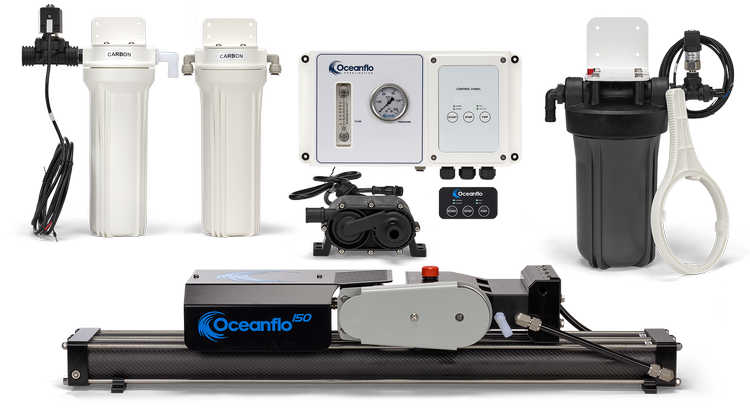

OF150A - What's included

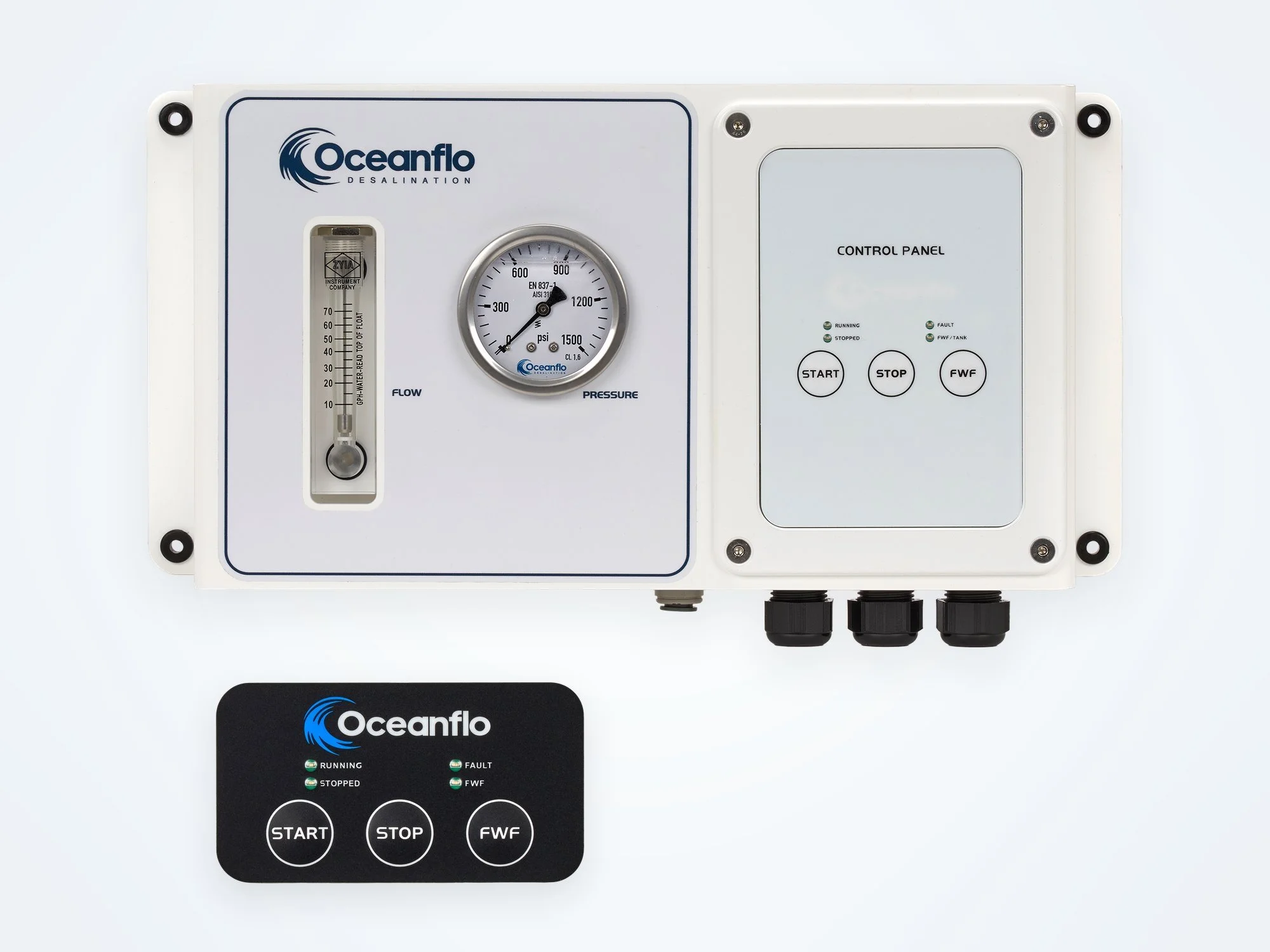

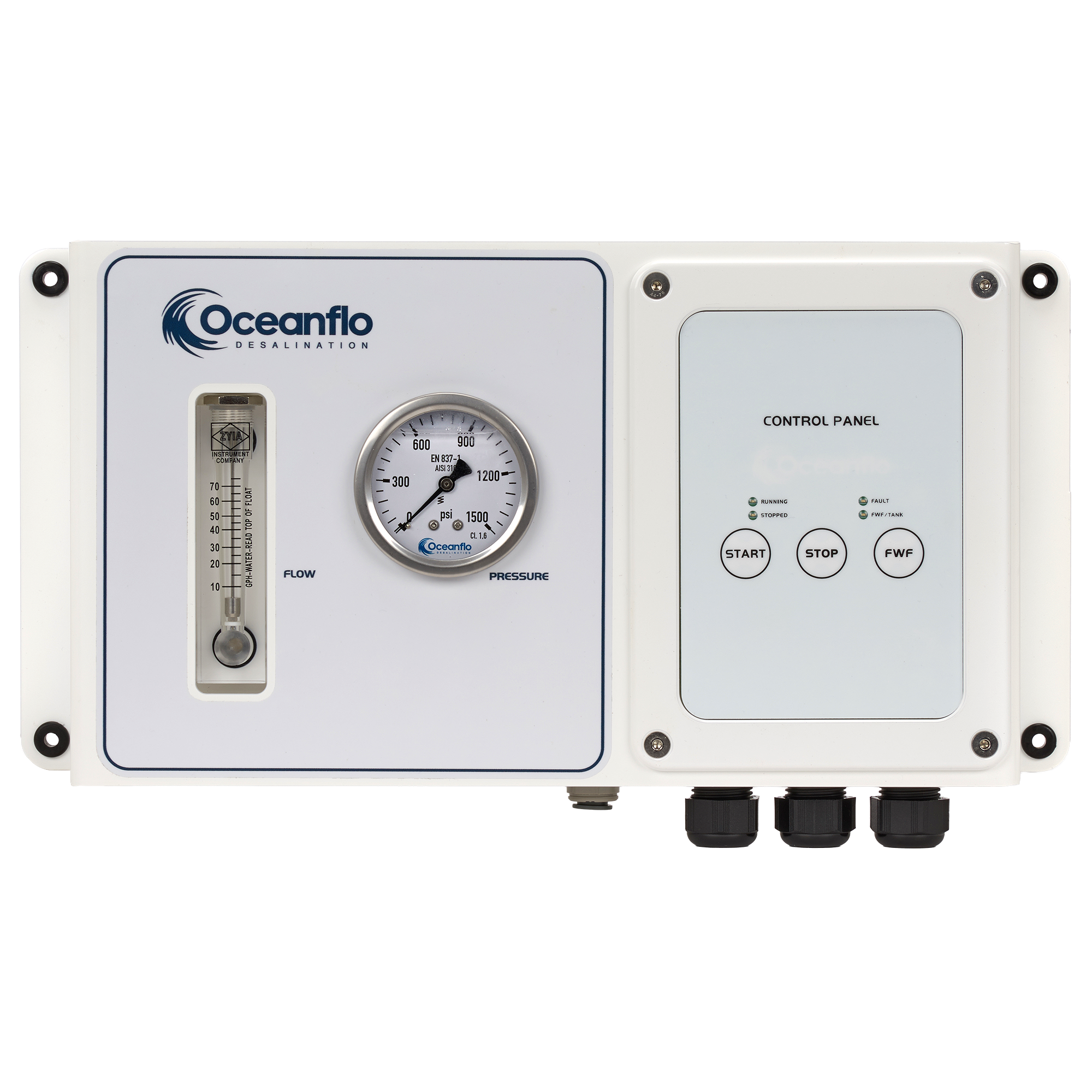

Oceanflo OF150A - Control Panel

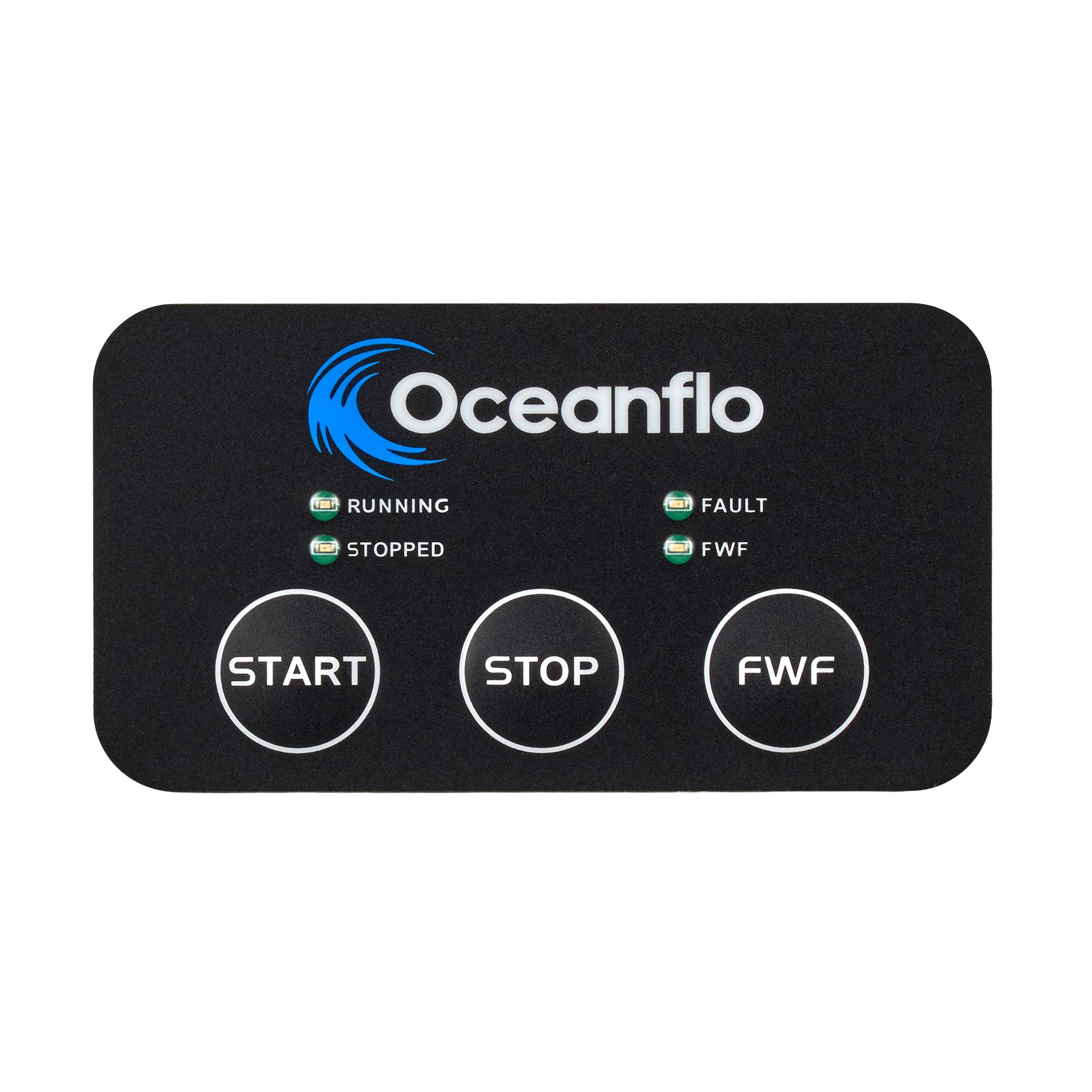

OF150A Cabine remote panel

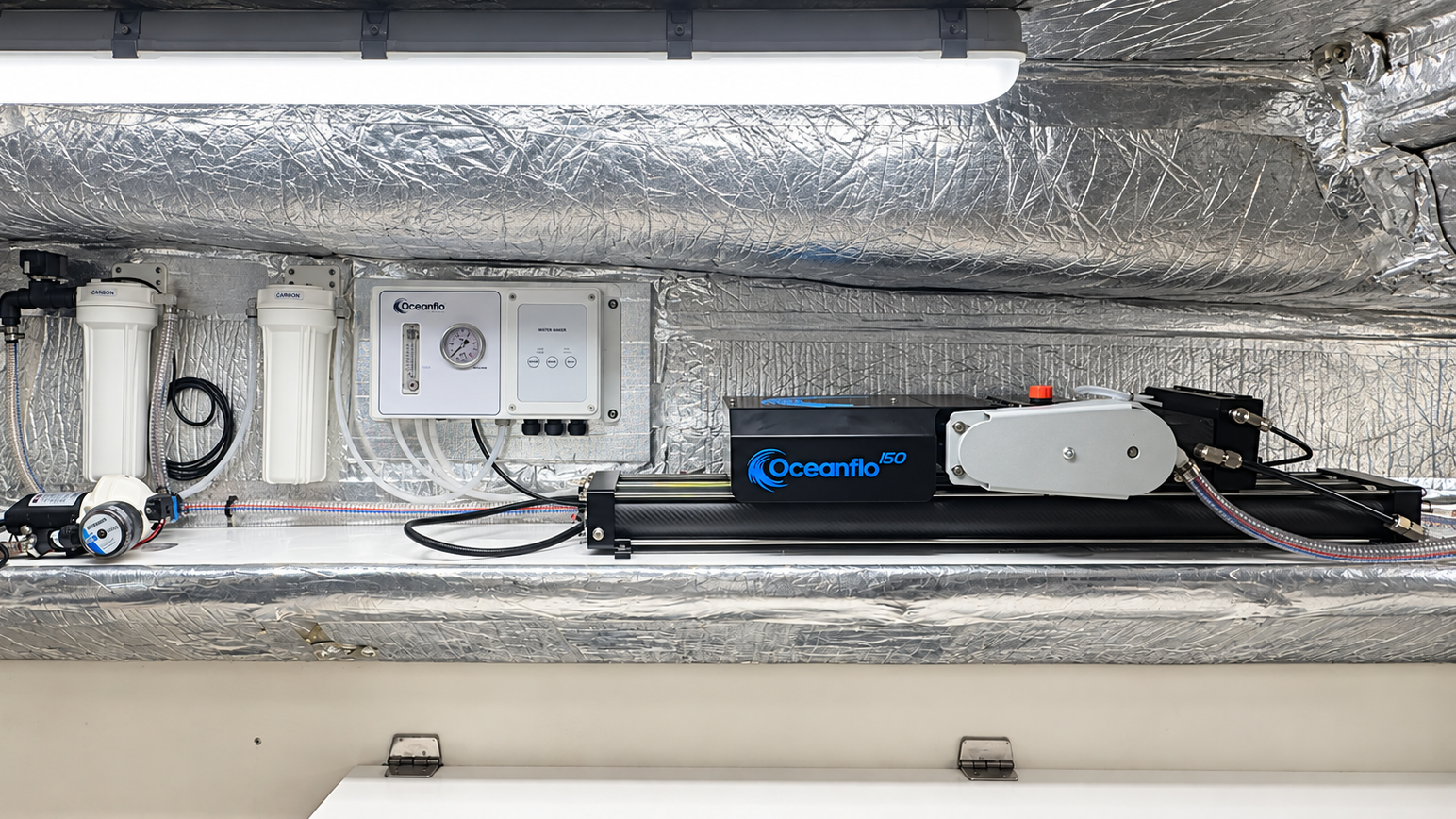

OF150A Installation
